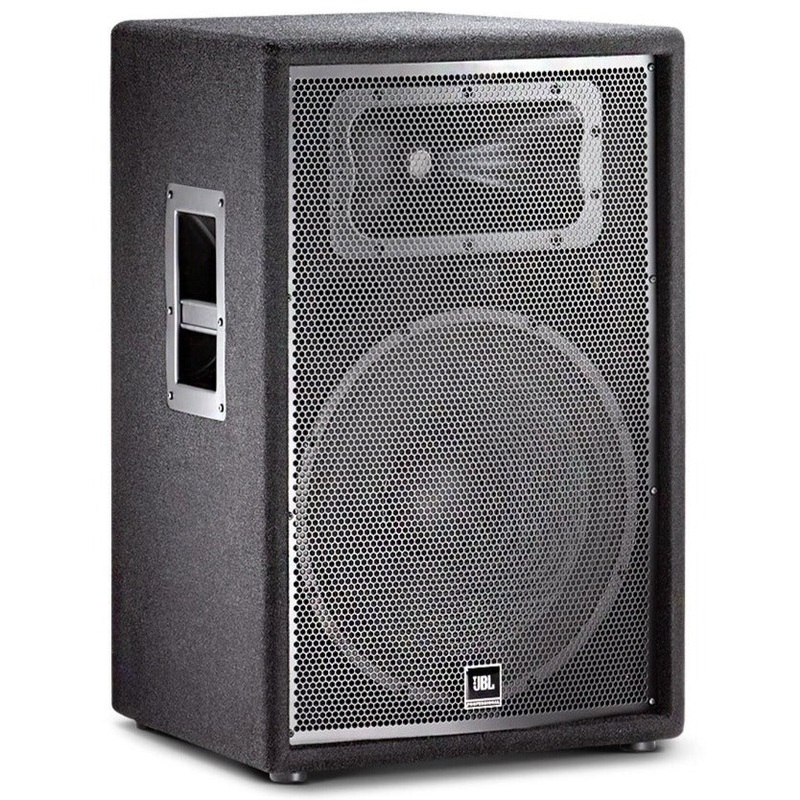

JBL JRX215 15 2-Way Passive Speaker

This trapezoidal, 15″ speaker system is at home in live sound, dance music and speech reinforcement. The JRX200 series delivers the performance and prestige JBL is known for at an affordable price point.

To meet these conflicting design goals, we looked at every element of the speaker system design. We kept everything that makes a speaker perform and sound its best and we eliminated things that don’t. With performance, value and popular price points, we are going to be building a lot of JRX200 speakers. This means we can apply efficient, high-volume production methods and purchase materials at the lowest cost. That’s how JRX200 delivers unprecedented value.

Features

• JBL 15 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
• JBL 2414H-C 25 mm (1 in ) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
• The advanced network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region.
• High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
• Progressive Transition high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
• The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in ) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
• SonicGuard protects the high frequency driver from excess power without interrupting the performance.
• Non-resonant, all-steel handles are used.
• Attractive 18-gauge perforated, steel grille protects components from damage.
• Dual-angle pole-mount socket allows the speakers to tilt 10 for more uniform audience coverage.

Specs

• General Specifications
• Power Rating (W, Continuous) 250
• Power Rating (W, Peak) 1000
• Frequency Range Hz (-10 dB) 41 – 18,000
• Frequency Response Hz (3 dB) 59 – 13,000
• Sensitivity (dB SPL 1w/1m) 99
• Nominal Impedance (ohms) 8
• Maximum SPL (peak dB) 129
• Dimensions
• Height (in) 27.5
• Depth (in) 17.0
• Width (in) 18.1
• Weight (lbs) 60.5
• Height (mm) 699.0
• Width (mm) 460.0
• Depth (mm) 432.0
• Weight (kg) 27.4
• Features
• Dual-angle pole-mount socket Yes
• SonicGuard Yes
