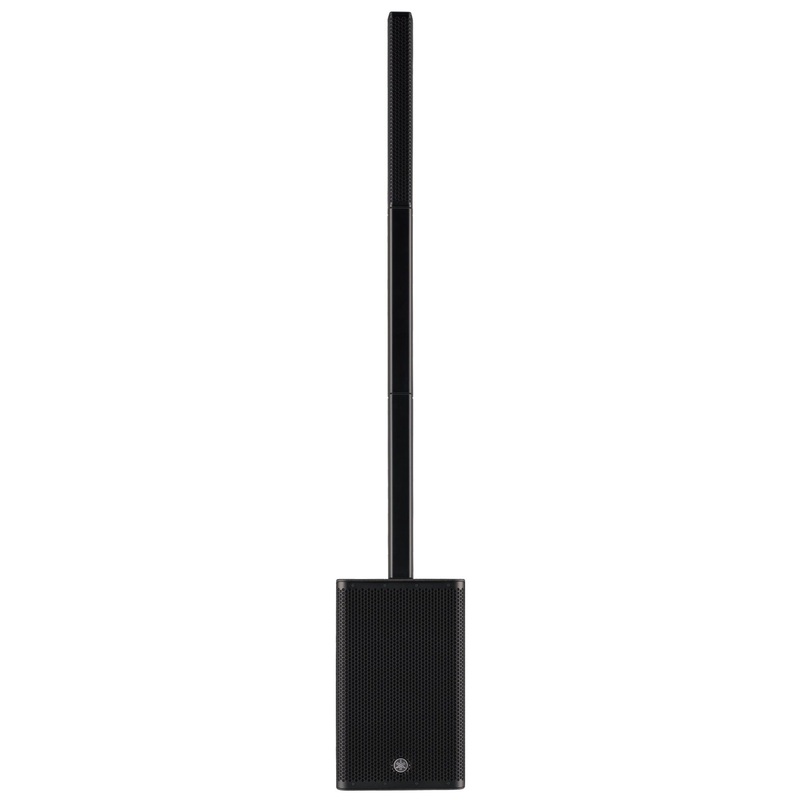

Yamaha DXL1K Column Type 1100W Portable PA System w/ Cover

Original price was: $1,679.00.Current price is: $98.00.

(In Stock)

SKU: ZX8790450561 Category:

The DXL1K is perfect for situations that require one or more wide dispersion speaker systems. When used with an outboard mixer, the simplicity of the DXL1K makes deployment fast and easy. The DXL1K can also be used along with the STAGEPAS 1K MKII when a stereo system is desired. Simply run a single cable from the STAGEPAS 1K MKII to easily link the units. The DXL1K is the only powered loudspeaker with this form factor available in the market. It offers superior audio performance that is easy to deploy.

Features

  • DLX1K Powered Speaker
  • Dedicated Cover
  • AC power cable
  • Owner’s manual

Specs

  • System Type Powered subwoofer with a line array speaker
  • Frequency Response (-10 dB) 37 Hz – 20 kHz
  • Coverage Angle (Horizontal x Vertical) 170 x 30
  • Crossover Frequency 240Hz
  • Maximum Output Level (Measured peakIEC noise@1m) 125 dB SPL
  • Power Consumption 25 W (Idle), 91 W (1/8 power)
  • Dimensions (W x H x D) System (maximum) 334 x 2,000 x 418 mm
  • Weight 23.0 kg
  • The number of Mixing Channels 2
  • Analog Inputs Mono mic/line x 1 + mono line x 1
  • LINK INMONO
  • EQ / Effects MODESPEECH/MUSIC/CLUB
  • Outputs LINK OUTMONO/R
  • Rated Output Dynamic 1,100WSubwoofer : 500W, Line array speaker : 600W
  • Maximum Output THD+N=1%, 5kHz Line array speaker : 250W4
  • THD+N=1%, 100Hz Subwoofer : 250W4
  • Frequency Response 1kHz, 20kHzREF=4kHz,1W,8 Line array speaker : -3dB, +1dB
  • 40Hz, 5kHzREF=1kHz,1W,4 Subwoofer : -3dB, +1.5dB
  • 20Hz, 20kHzREF=1kHz,+10dBu,10k LINK OUT : -2dB, +1dB
  • 20Hz, 20kHzREF=1kHz,+10dBu,10k MONITOR OUT : -2dB, +1dB
  • THD+N 1kHz 20kHz LPF, 8, Half power Line array speaker : 0.2 %
  • 1kHz 20kHz LPF, 4, Half power Subwoofer : 0.2 %
  • 1kHz 20kHz LPF, +10dBu, 10k LINK OUT : 0.05%
  • 1kHz 20kHz LPF, +10dBu, 10k MONITOR OUT : 0.05%
  • Protection Speaker DC-fault, Over Voltage
  • Amplifier Thermal, Over Current, Integrated Power Limit
  • Power supply Thermal, Over Voltage, Under Voltage
  • Enclosure Line array speaker : Enclosed
  • Subwoofer : Bass-reflex type
  • Speaker Unit Line array speaker : 1.5 (3.8 cm) Cone x10
  • Subwoofer : 12 (30 cm) Cone
  • Nominal Impedance Line array speaker : 8
  • Subwoofer : 4
  • Dimensions (W x H x D) Line array speaker : 67 x 582 x 86 mm
  • Spacer (each) : 67 x 555 x 86 mm
  • Subwoofer : 334 x 550 x 418 mm
  • Weight Line array speaker : 1.8 kg
  • Spacer (each) : 0.6 kg
  • Subwoofer : 20.0 kg
  • Included in the package Power cord x1,
  • cover x1, Owner’s Manual
