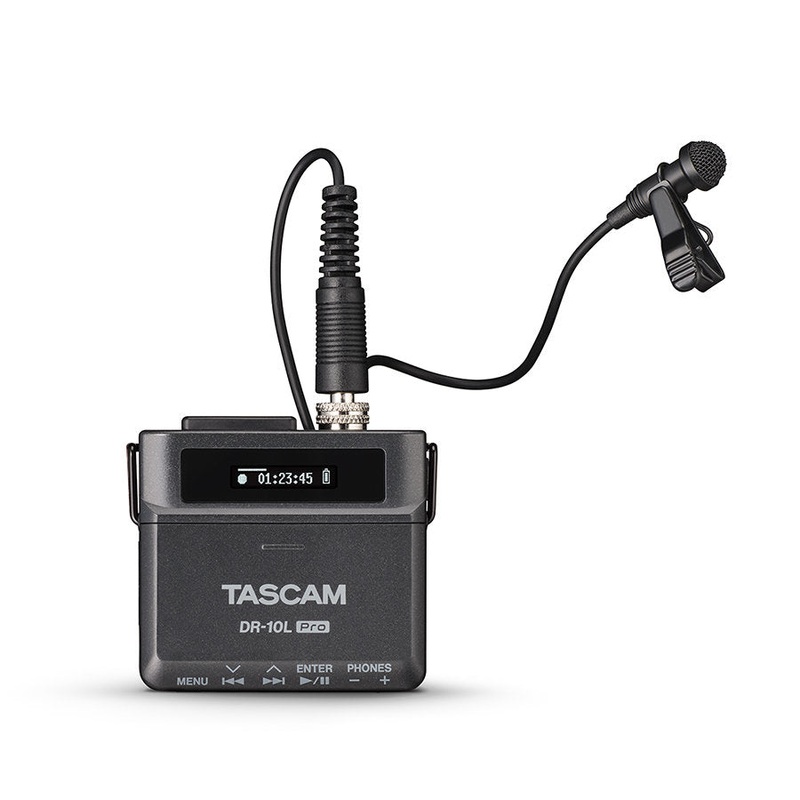

Tascam DR-10L PRO Ultra-Compact 32-bit Float Audio Field Recorder w/ Lavalier Mic

Ultra-Compact 32-bit Float Audio Field Recorder With Lavalier Mic

The DR-10L Pro is sure to carry on as the industry standard for AV creators, wedding and event capturing, field recording and more. With the DR-10L Pros 32-bit float recording technology, you can capture a whisper, a scream, and everything in-between with impeccable fidelity, ultra-low noise, and no need to fine-tune gain levels. Support for wireless time code with Atomos products, the ability to control up to 5 units wirelessly via the app, and long battery life and generous storage capacity optimize the DR-10L Pro for professional applications.

*Optional AK-BT1 needed for app control and wireless timecode

**Note: Only use AK-BT1 adapter. This product not compatible with AK-BT2 adapter.

FEATURES

• Ultra-lightweight, compact and wearable design is perfect when stealth is a priority.
• TM-10L lavalier microphone with clothing clip and windscreen included (cable length: 160cm).
• 32-bit float recording and dual AD converter technology means youll never need to scrap a recording due to poor audio levels, and no need to fine-tune input levels.
• Supports recording in MP3 format
• Huge storage capacity, with support for microSDXC cards up to 512GB.
• Records at least 24.5 hours on two AAA batteries* for all-day video shoots.
• Optional AK-BT1 Bluetooth adapter (sold separately) adds wireless control and synchronization.
• Free TASCAM RECORDER CONNECT app for iOS, iPadOS and Android allows you to control up to 5 units simultaneously *.
• LTC jam sync hardwired timecode with an unlimited number of DR-10L Pro units
• Wireless time code synchronization supported with compatible Atomos products such as BLUE or CONNECT series.
• Supports recording in MP3 format
• Screw lock mechanism securely connects the microphone connector to the recorder.
• Sliding recording switch mechanism makes it fast and easy to start recording, and prevents accidental operation during recording.
• Lock function disables all operations other than recording stop during recording.
• Automatic file closing function to prevent the loss of recorded data if the batteries run out.
• Automatic leveling and limiting prevent distortion caused by overloads.
• Low-cut filter reduces ambient hum and rumble (40Hz/80Hz/120Hz/220Hz).
• Easy-to-read organic EL display.
• Headphone output enables input monitoring and allows you to check recorded files.
• USB Type-C port enables connecting extra power supply and easy data exchange with computers.
• Belt clip included.
• Includes iZotope RX Elements audio production editing software.

Note: * Lithium battery. * The number of devices that can be connected may vary depending on the usage environment and radio wave conditions.

HIGHLIGHTS

The Stealthiest Recorder and Mic That You’ll Never See

The DR-10L Pro is ultra-compact and lightweight, the perfect solution when stealth is a priority. Fitting in the palm of your hand and weighing in at just 65 grams, this recorder is easy to hide at film shoots, weddings, stage performances, and other projects where invisibility is crucial. The included belt clip attaches easily and securely to clothing, allowing you to capture great audio without compromising your talent.

Dual ADCs and 32-bit Float Recording for Fast Setup and Worry-free Recording

The DR-10L Pros default 32-bit float recording mode employs dual ADCs to capture sounds across a huge dynamic range without distorting or introducing excessive noise that means videographers can avoid having to scrap audio due to poor levels. With 32-bit float recording, theres no need to adjust input gain levels, allowing you to set up faster and with total confidence that youll capture great audio in any setting.The included TM-10L microphone captures clear, detailed audio while handling loud sound pressure levels without distorting, making it the perfect lav mic for the DR-10L Pros 32-bit float recording mode. What is 32-bit Float Recording?

Sync Smarter, Not Harder

With Firmware V2.0, the DR-10L Pro now supports LTC jam sync – making multi-recorder timecode alignment easier than ever. Jam sync hardwired timecode with an unlimited number of DR-10L Pro units via the top-mounted 3.5mm stereo mini cable connection. No matter which timecode generator youre using, access a world of possibilities on your terms. Seamless and universal timecode integration means faster alignment, less stress, and more time to work your magic in post.

AAA Batteries Power Long Shooting Sessions

Whether you’re capturing audio from people at a wedding reception, a busy trade convention, or a lengthy ceremony, the DR-10L Pro is ready to keep recording as long as you are. Just two AAA batteries can power the DR-10L Pro personal recorder for up to 24.5 hours*, minimizing concerns over battery changes during the shoot. In addition, files are saved approximately every 20 seconds during recording, so data loss due to unexpected power supply interruptions are kept to a minimum. *Lithium batteries

Remotely Control up to 5 Units with the TASCAM RECORDER CONNECT App

With the optional AK-BT1 Bluetooth dongle, DR-10L Pro recorders can be controlled from iOS, iPadOS and Android devices wirelessly with the free TASCAM RECORDER CONNECT app. In addition to controlling up to five DR-10L Pro units remotely, the TASCAM RECORDER CONNECT app allows videographers to check device status and view the recorded waveforms real time. You can also use the app to name devices for easy identification, for example Bride, Groom, and so on.

Other Features of TASCAM RECORDER CONNECT App:

• Visual confirmation of input sound with waveform display
• Easy management of multiple units with unique names and identification color settings
• Metadata (project name, scene name, take number) can be recorded in the recording file (BEXT, iXML)
• The preset data of the unit can be saved in the app. Your favorite settings can be recalled with a few taps
• Synchronize the unit’s clock with the time on your smartphone or tablet

*Audio monitoring via app is NOT supported

Supports Wireless Time Code with Atomos Products

With the optional AK-BT1 Bluetooth dongle, the DR-10L Pro is ready to wirelessly sync time code with supported Atomos products. Time code allows videographers to perfectly align audio recordings with video, even when there is no audio on the camera. Time code is crucial when videographers are dealing with multi-camera video shoots, and saves valuable time in post production.

High-Visibility OLED Display Allows You to Check Device Status Fast

Whether you’re in a dark environment or outdoors in the sun, the DR-10L Pro’s high-visibility OLED display allows you to confirm settings at a glance. You can check your battery level, recording status, and input levels right from the display, with all advanced functions only a couple button presses away.

Automatic File Save System

The TASCAM proprietary Auto File Save System avoids losing your important data during recording. Files are saved approximately every 20 seconds during recording, so data loss due to unexpected power supply interruptions are kept to a minimum.

Easy to Monitor Input and Recordings

The DR-10L Pro personal recorder is equipped with a headphone output for monitoring convenience. You’ll be able to monitor the input before or during recording, and also check the quality of your recordings immediately without having to first transfer them to a computer.

High Precision Clock to Prevent Drifts Between Audio and Video

A high precision TCXO is employed for the internal clock generator and boasts a specification of 0.5ppm, like other TASCAM professional studio equipment. This ensures that the clock drift is kept within one frame per 24 hours. It also eliminates any audio drift between separately recorded files.

iZotope RX Elements Audio Repair Bundle Included

The DR-10L Pro is bundled with a free version of RX Elements, iZotope’s groundbreaking audio repair and noise reduction tool. RX Elements brings videographers powerful audio restoration capabilities you have to hear to believe, from seamlessly removing coughs and background noises to reducing wind roar and ambient noise. Live video shoots for weddings, on-location interviews, and documentaries can present countless post-production challenges, and RX Elements gives videographers the tools they need to deal with them.

SPECIFICATIONS

Audio Performance

• Frequency response*: 20Hz – 20kHz: +0dB/-1dB
• Total harmonic distortion ratio (THD+N)*: 0.01% (1kHz, input: -21dBV)
• Dynamic Range*: 105dB or higher

*Input SD data

Note : 0dBV=1Vrms, JEITA CP-2150

Recorder specifications

• Recording media: microSD cards (64MB – 2GB), microSDHC cards (4GB – 32GB), microSDXC cards (64GB – 512GB)
• Recording / playback formats:
  • WAV (BWF): 44.1k/48kHz, 16/24-bit, 32-bit float
  • MP3: 44.1k/48kHz
• Recording: 128k/192kbps
• Playback: 32 – 320kbps

Analog audio input ratings

• Input:
  • Connector: 3.5mm(1/8″) TRS jack with screw lock
  • Maximum input level: -11dBV
  • Input gain: 7.5dB – 38dB
  • Input impedance: 2k or higher
• Lavalier microphone (TM-10L):
  • Sensitivity: -42dBV/Pa
  • Max. SPL: 115dBSPL
  • Cable length: 1.6m

Analog audio output ratings

• Headphone output:
  • Connector: 3.5mm(1/8″) stereo mini jack (Dual Mono Output)
  • Maximum output: 10mW + 10mW (THD+N 0.1% or less, into 32)
  • Working impedance: 16ohms to 400ohms

Control input/output ratings

• USB port:
  • Connectors: USB Type-C
  • Format: USB2.0 HIGH SPEED mass storage class
• Bluetooth device connector: For Bluetooth adapter (AK-BT1) only

Plug-in power (Mic bias)

• 2.3V

Power

• 2 AAA batteries (Alkaline / Ni-MH / Lithium), USB bus power

Power consumption (battery)

• 0.3W (MAX)

Current consumption (USB bus power)

• 0.1A (MAX)

Battery (RTC)

• Lithium 1 (built in with soldering)

Dimensions (excluding protrusions)

• 53 (W) 50.7 (H) 21.4 (D) mm

Weight

• 65g(including battery) / 43g (without battery)

Operating temperature

• 0 – 40

Battery Operation Time (Continuous Operation)

• Alkaline batteries (EVOLTA): About 16.5 hours / About 16 hours w/ Bluetooth
• Ni-MH batteries (eneloop): About 11.5 hours / About 10.5 hours
• Lithium-ion batteries (Energizer Ultimate Lithium): About 24.5 hours / About 23 hours w/ Bluetooth

Settings During Time Measured: Format : WAV, 48kHz, 32-bit float, Mic connected, Headphones not connected, Limiter : OFF, File type : MONO

Included

• DR-10L Pro x1
• Belt clip x1
• USB cable (Type A – Type C) x1
• TM-10L:
  • Lavalier microphone x1
  • Microphone clip x1
  • Windscreen x1
• Start-up Guide (including warranty) x1
• TASCAM ID registration guide x1
• iZotope RX Elements download card x1
