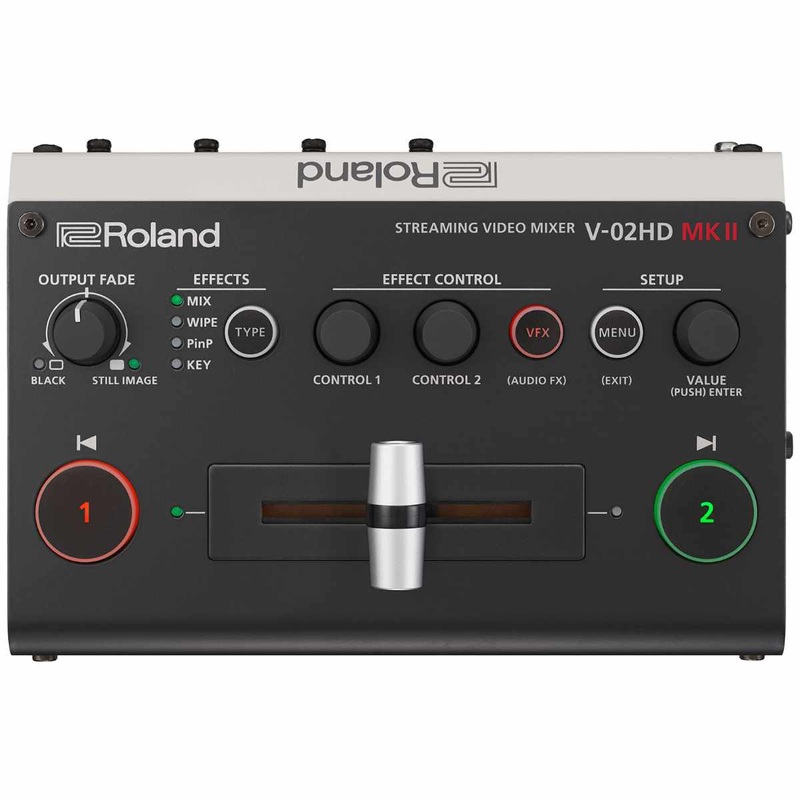

Roland V-02HDMK2 Streaming Video Mixer

Step Up Your Livestreams

Ditch the webcam and step up your livestreams with the Roland V-02HD MK II Streaming Video Mixer. Compact, affordable, and simple to use, this desktop device allows you to connect and switch two high-quality HDMI cameras and send them directly to your favorite streaming platform over USB-C. You can also mix in audio sources via dedicated inputs and HDMI, apply video effects and transitions, and more. With the V-02HD MK II, you have the interface you need to bring higher production values to your live video productions.

HIGHLIGHTS

Simply Simple

The V-02HD MK II is the worlds easiest two-camera livestreaming solution. With its intuitive layout, large controls, and T-bar fader, its incredibly simple to operate, even if you have no broadcasting experience.

Go live in three quick steps:

1. Plug in up to two sources via HDMI, including cameras, computers, mobile devices, and gaming consoles.
2. Connect the USB-C output to your computer.
3. Launch your streaming software and select the V-02HD MK II as the camera source.

Stream with Every Platform

The V-02HD MK II connects to the streaming computer you already own and the audience you already have. Its instantly recognized as a camera source when you plug in via USB, so its ready to go for Facebook, YouTube, Twitch, and Zoom. It also integrates seamlessly with OBS Studio, StreamYard, and Restream for more advanced workflows. High-quality streaming up to 1080p/60 FPS is supported, and its possible to send two additional feeds to external HDMI devices via the Program Out and Preview Out if needed.

A Stress-Free Setup

When you use the V-02HD MK II, everything just works. Plug in your two HDMI sources and let Rolands advanced tech handle all the details, and say goodbye to computer driver conflicts, crashes, and other reliability issues that come with multiple USB webcams and HDMI-to-USB encoder adaptors.

HDMI Cameras for the Win

From talk shows and live demonstrations to artistic performances and beyond, cameras that support HDMI output will elevate the image quality in your streams and drive more audience engagement. They have much better lenses than any webcam and often have zoom capability to frame your perfect shot. You can connect a variety of different camera types to the V-02HD MK II. Whichever solution you choose, make sure it supports a clean HDMI output thats free of any overlayed information.

• GoodA smartphone or tablet with an HDMI adaptor offers a good option thats compact and easy to set up anywhere.
• BetterA point-and-shoot camera, action camera, or video camcorder with features like zoom and deeper exposure and focus control will take things even further.
• BestA DSLR or mirrorless camera is the ultimate solution, offering the best image quality for a cinematic look, interchangeable lenses, and improved performance in low-light conditions.

Upgrade Your Sound Too

The V-02HD MK II also includes a 10-channel digital audio mixer with Rolands legendary sound quality. There are two audio inputs with 3.5 mm jacks, and each supports a microphoneincluding lavalier mics that require plug-in poweror stereo audio from a smartphone, mixer, or other device. Embedded stereo audio from your HDMI sources can be mixed in as well, including microphones connected to your cameras.

Switch with Your Feet

If you give demonstrations or perform in your livestreams, your hands are busy with that task. The V-02HD MK II supports control with up to two optional BOSS footswitches, allowing you to direct your stream without interrupting your presentation. Stomp on a footswitch to switch camera angles, cut to a static image, transition scene layouts, fade picture-in-picture windows, and more.

Go Deeper with Advanced Pro A/V Features

Out of the box, the V-02HD MK II gives you the dedicated controls you need to switch cameras and adjust video and audio sources when you go live. But if you want to dive deeper, theres a world of advanced features and custom assignments to explore. Connecting an HDMI monitor to the Preview Out provides a display for adjusting a vast range of functions from the V-02HD MK II panel. And with Roland’s remote control apps for iPad, macOS, and Windows, you can operate the V-02HD MK II via an intuitive graphical interface.

More Audio Control

Access full mixing functions for all audio sources, add studio polish with compressor, EQ, and reverb, and have fun with formant shifting and robot sounds with the unique voice changer effect. Its also possible to independently delay the audio inputs and outputsincluding the headphones outputif you have any synchronization issues with your cameras.

Visual Effects and Scenes

Adding video effects and creating scenes has become easier with software, but they put a big burden on your computer. The V-02HD MK II provides a dedicated hardware solution that lightens that load. Via the preview monitor and apps, you can set up picture-in-picture windows, create titles and lower thirds, composite scenes, and much more.

Footswitch Assignment

If youve added footswitches to your system, you can set custom functions for them in the preview monitor and remote apps.

Wireless Camera Expansion with the AeroCaster Switcher

The purchase of a V-02HD MK II provides free access to Rolands AeroCaster Switcher for iPad, a powerful solution to cleanly expand your camera setup without the hassle of extra cables. With this unique app, you can wirelessly connect and switch up to five smartphone or tablet cameras, then output a combined program feed to the V-02HD MK II or another supported Roland switcher with HDMI input.

The dedicated V-02HD MK II Remote app turns an iPad into an efficient touch interface for the V-02HD MK II. Run essential switching functions, mix audio with virtual faders, change settings and effect parameters quickly, and create up to eight custom scenes for seamless setup changes.

V-02HD MK II RCS for macOS and Windows

With the V-02HD MK II RCS application for macOS and Windows,* you can control nearly all V-02HD MK II functions remotely from your computer via USB. V-02HD MK II RCS can run at the same time as your streaming software, allowing you to direct the entire production from your computer screen.

SPECIFICATIONS

Video Processing

• 4:4:4 (Y/Pb/Pr), 10-bit

Input Connectors

• INPUT 1–2: HDMI type A x 2

* HDCP Supported

* Multi-format Supported

Output Connectors

• PROGRAM OUT: HDMI type A*
• PREVIEW OUT: HDMI type A*
• USB STREAM:USB Type-C (TM)

* HDCP Supported

* Multi-format Supported

Input Formats

• 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
• 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
• 1080/23.98p, 1080/24p
• VGA (640 x 480/60Hz), SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz)
• WXGA (1280 x 800/60Hz), SXGA (1280 x 1024/60Hz)
• FWXGA (1366 x 768/60Hz), SXGA+ (1400 x 1050/60Hz)
• UXGA (1600 x 1200/60Hz), WUXGA (1920 x 1200/60Hz)

* The refresh rate is the maximum value of each resolution.

* Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.

* 1920 x 1200/60 Hz: Reduced blanking

* The input interlaced video signal is converted to progressive video signal by internal processing.

*1 FRAME RATE = 59.94 Hz

*2 FRAME RATE = 50 Hz

Output Formats

PROGRAM OUT, PREVIEW OUT:

• 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/29.97p *1
• 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
• SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
• WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz)
• SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz)
• UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
• HD (1280 x 720/60 Hz), FHD (1920 x 1080/60 Hz)

* Conforms to VESA DMT Version 1.0 Revision 11.

* The output refresh rates of 800 x 600–1400 x 1050 are 75 Hz when the unit’s frame rate setting is 50 Hz.

* 1920 x 1200/60 Hz: Reduced blanking

*1 FRAME RATE = 59.94 Hz

*2 FRAME RATE = 50 Hz

USB STREAM:

• 1080/60p, 720/60p, 640 x 480/60p *1
• 1080/59.94p, 720/59.94p, 640 x 480/59.94p *2
• 1080/29.97p, 720/29.97p, 640 x 480/29.97p *3
• 1080/50p, 720/50p, 640 x 480/50p *4
• 1080/25p, 720/25p640 x 480/25p *5

*Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.

*1 FRAME RATE(USB OUT) = 60 Hz

*2 FRAME RATE(USB OUT) = 59.94 Hz

*3 FRAME RATE(USB OUT) = 29.97 Hz

*4 FRAME RATE(USB OUT) = 50 Hz

*5 FRAME RATE(USB OUT) = 25 Hz

Video Effects

• Transition: CUT, MIX (DISSOLVE), WIPE (9 types)
• Composition: PinP (RECTANGLE, CIRCLE, DIAMOND), KEY (Luminance Key, Chroma Key)
• Visual Effects (14 types): MOSAIC, WAVE, RGB REPLACE, COLORPASS, NEGATIVE, COLORIZE, POSTERIZE, SILHOUETTE, EMBOSS, FIND EDGES, MONOCOLOR, HUE OFFSET, SATURATION OFFSET, VALUE OFFSET
• Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output

Dimensions

• 160 (W) x 108 (D) x 51 (H) mm
• 6-5/16 (W) x 4-1/4 (D) x 2-1/16 (H) inches

Weight (excluding AC adaptor)

• 0.6 kg
• 1 lbs 6 oz

Accessories

• Startup Guide
• AC adaptor
• Power cord
• Cord hook

Options (sold separately)

• Footswitch: BOSS FS-5U, FS-6, FS-7
• Expression Pedal: EV-5, BOSS FV-500L, FV-500H

Audio Processing

• Sampling rate: 24 bits/48 kHz

Audio formats

• Linear PCM, 24 bits/48 kHz, 2ch

Input Connectors

Analog:

• AUDIO IN 1–2: Stereo miniature type x 2, plug-in power supported

Digital:

• USB STREAM: USB Type-C ()
• INPUT 1–2: HDMI Type A x 2

Output Connectors

Analog:

• PHONES: Stereo miniature type

Digital:

• USB STREAM: USB Type-C (TM)
• PROGRAM OUT: HDMI type A
• PREVIEW OUT: HDMI type A

Input Level

• AUDIO IN: -10 dBu (Maximum: +10 dBu)

Input Impedance

• AUDIO IN: 10 k ohms

Output Level

• PHONES: 92 mW + 92 mW (32 ohms)

Output Impedance

• PHONES: 10 ohms

Audio Effects

• Delay, Reverb, High pass filter, Noise gate, De-esser, Compressor, Equalizer, Voice changer
• Multi-band compressor, Limiter, Test tone output

Other Connectors

• USB STREAM: USB Type-C (TM) (for backup from PC, for remote control from PC and iPad)
• CTL/EXP:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)

Other Functions

• Preset Memory (8 types)
• Panel lock function
• EDID Emulator
• Auto Switching
• Auto Input Detect

Power Supply

• AC Adaptor

Current Draw

• 1.4 A

Power Consumption

• 12.6 W

Operation Temperature

• +0 to +40 degrees Celsius
• +32 to +104 degrees Fahrenheit
