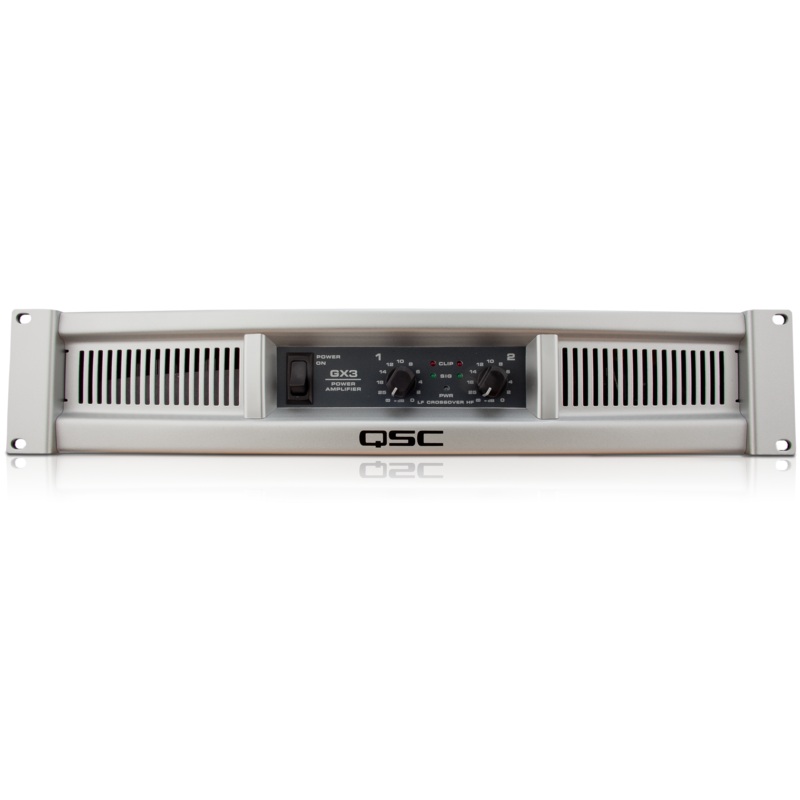

QSC GX3 Power Amplifier 300 Watts @ 8 Ohms

Power levels matched to the most popular speakers. Inputs: XLR, 1/4″ TRS and phono. Outputs: Speakon combo and binding posts.

Features

• Power levels matched to the most popular speakers used by entertainers
• Optimized for maximum real-world headroom into 4- and 8-ohm speaker systems
• Inputs: XLR, 1/4″ TRS and phono input connectors for compatibility with any source
• Outputs: Speakon combo accepts 1/4″ (TS) plugs or Speakon 2- and 4-pole plugs (connects 2 poles only). Binding posts support all other speaker wiring systems
• Minimum depth chassis (10.1″ / 257 mm) fits in compact, inexpensive effects racks
• Lightweight – GX3 and GX5 less than 26 lb (12.5 kg). GX7 only 15.5 lb (7 kg)*
• Detented gain controls for precise setting and matching of sensitivity
• GuardRail automatically protects the amplifier and loudspeakers from damage due to temperature rise or overdrive without shutting down the show
• Front panel LEDs monitor power, signal, and clipping
• Subwoofer/satellite crossover built-in
• * 230V 16.5 lb (7.5 kg)

Specs

• 8 ohms / 1 kHz (both channels driven) 300 W
• 8 ohms / 1 kHz (single channel driven) 350 W
• 4 ohms / 1 kHz (both channels driven) 425 W
• 4 ohms / 1 kHz (single channel driven) 500 W
• Distortion (1 dB below rated power, 1 kHz) 8 ohms: less than 0.02% 4 ohms: less than 0.05%
• Signal to Noise (20 Hz – 20 kHz) 100 dB
• Input Sensitivity 1.2 V rms
• Voltage Gain 32.2 dB
• Output Circuitry Class B
• Power Requirements (1/8 power, pink noise at 4 ohms, 120V) 6.3 A
• Frequency Response 20 Hz20 kHz, +0, -1 dB
• Dynamic Headroom (4 ohms) 2 dB
• Input Impedance Greater than 20 k (balanced)
• Maximum Input Level +24 dBu (16 V rms)
• Input Connectors (each channel) 3-pin XLR and 1/4-inch TRS, balanced, parallel
• Phono, unbalanced
• Output Connectors (each channel) Speakon, 1/4-inch, Binding posts
• Amplifier and Load Protection
• Short circuit, open circuit, thermal, RF protection
• Load protected against DC faults
• Front Panel Controls and Indicators
• Gain controls, 21 detents
• Red CLIP LEDs, proportional, 0.1% THD threshold
• Green SIGNAL LEDs, threshold 35 dB below clipping
• Blue POWER LED, AC on
• Rear Panel Controls
• Full Range / Crossover switch
• 100 Hz, 3rd order LP (sub), 2nd order HP (top)
• Product Dimensions
• (HWD) 89 483 257 mm – 3.5 19 10.1 in
• Carton Dimensions (HWD) 610 380 153 mm – 24 15 6 in
• Net Weight12.1 kg / 27 lb
• Shipping Weight13.2 kg / 29.1 lb
