Sale

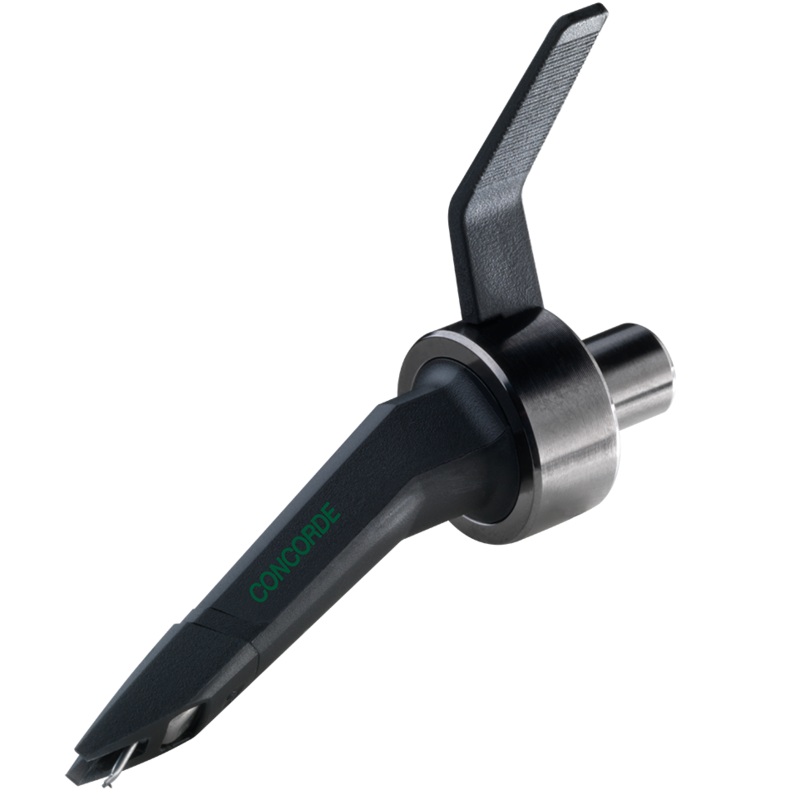

Ortofon CCMKIIMIX Concorde MKII MIX – All-Rounder (Single)

Original price was: $154.99.Current price is: $77.50.

(In Stock)

SKU: ZX8790454672 Category:

The MIX is a general-purpose model for scratch and back-cueing

  • Provides great performance and durability. It has a good quality spherical stylus, a solid cantilever, and serves general purposes well.
  • It offers both reasonable output, high sound quality and a good tracking ability for virtually any style of music.
  • With transparent sound across the spectrum and excellent handling ability, the MIX represents one of the longest running values in DJ cartridges.
  • Excellent price-to-performance ratio.

Specs

  • Output voltage at 1000Hz, 5cm/sec. – 6 mV
  • Channel balance at 1kHz – 1,5 dB
  • Channel separation at 1kHz – 20 dB
  • Channel separation at 15 kHz – 15 dB
  • Frequency range at -3dB – 20-20.000 Hz
  • Tracking ability at 315 Hz at recommended tracking force – 100 m
  • Compliance, dynamic lateral – 14 m/m N
  • Stylus type – Spherical R 18 m
  • Tracking force range – 2 – 4 g
  • Tracking force recommended – 3 g
  • Internal impedance, DC resistance – 700 Ohm
  • Internal inductance – 450 mH
  • Recommended load resistance – 47 kOhm
  • Recommended load capacitance – 200-600 pF
  • Cartridge weight – 18,5 g
  • Replacement stylus unit – MIX
