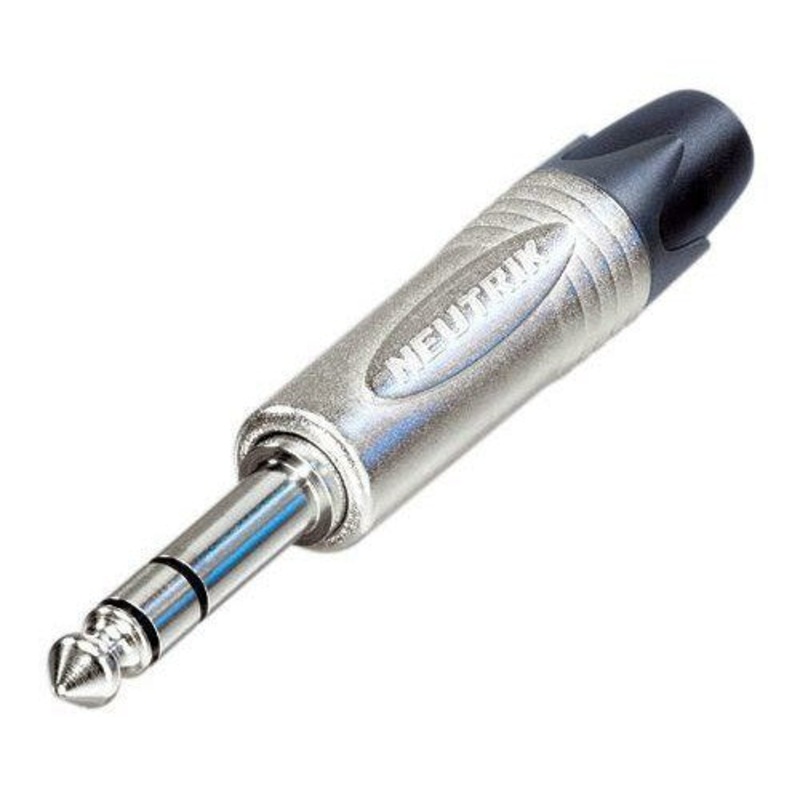

Hosa NP3X Neutrik Connector, 1/4 in TRS

3 pole 1/4″ professional phone plug, nickel contacts, nickel shell
The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4″ plug with unique Neutrik chuck type strain relief on the market.

The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88 mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Features

• Extra slim 1/4″ plug for highest packing density
• Robust diecast shell in stylish design
• Proven chuck type strain relief for reliable cable retention
• Sleek design for best handling convenience
• Precision machined one-piece contacts – avoid hook up of tip contact

Specs

• Title NP3X
• Connection Type Plug
• Gender male
• Electrical
• Contact resistance depends on mating connector m
• Dielectric strength 1 kVdc
• Insulation resistance > 2 G (initial)
• Rated current per contact depends on mating connector A
• Rated voltage < 50 V
• Mechanical
• Cable O.D. 4 – 7 mm
• Lifetime > 1000 mating cycles
• Wiresize 1 mm
• Wiresize 18 AWG
• Wiring Solder contacts
• Material
• Bushing Polyacetal (POM) + PU
• Contact plating 2 m Ni (Su)
• Contacts Brass (CuZn39Pb3)
• Insert Polyamide (PA 6.6 30 % GR)
• Shell Zinc diecast (ZnAl4Cu1)
• Shell plating Nickel
• Strain relief Polyacetal (POM)
• Environmental
• Standard compliance IEC 60603-11 / EIA RS-453
• Solderability Complies with IEC 68-2-20
• Temperature range -20 C to +65 C
