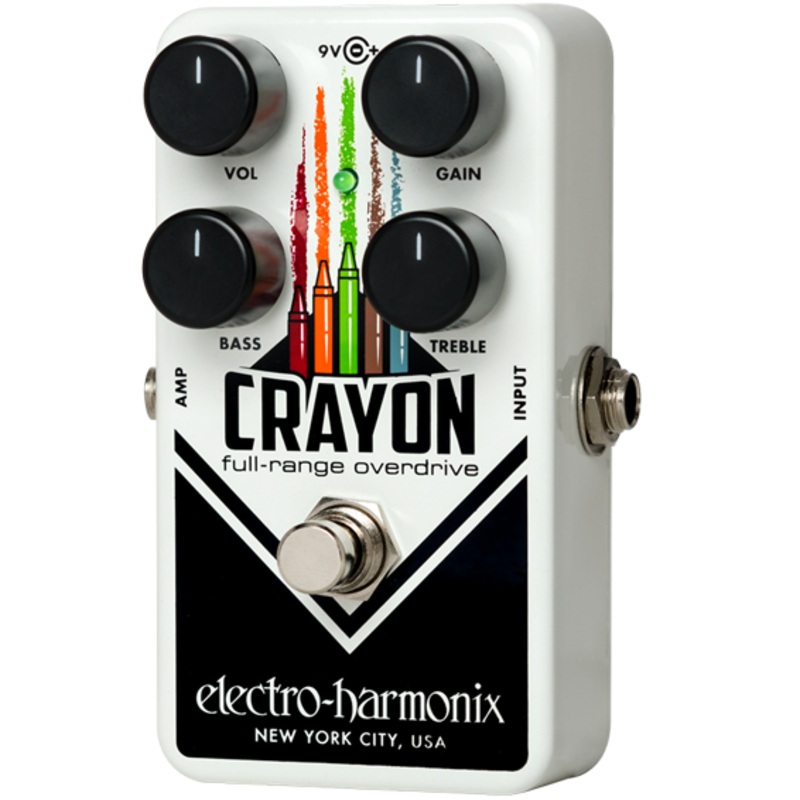

Electro-Harmonix CRAYON-69 Full Range Overdrive – 69

The Crayon is a versatile overdrive with independent Bass and Treble controls and an open frequency range that provides players with a musical alternative to customary mid-focused overdrive pedals. It delivers a range of sounds going from a suggestion of dirt to full-on distortion and is equally impressive all by itself or when driving another overdrive pedal.

Specs

• Full-range overdrive with a lush, rich, warm tone
• Independent Bass and Treble controls
• True Bypass for maximum signal path integrity
• Compact pedalboard-ready pedal
• 9-Volt battery included, also accepts optional EHX 9.6VDC-200mA power supply
• 9V Power Jack The Crayon can run off of a 9V battery or you can use an optional 9VDC AC Adapter capable of delivering at least 25mA to the 9V power jack, such as the Electro-Harmonix 9.6DC-200 power supply. The AC Adapter must have a center negative plug. The battery may be left in or taken out when using an AC Adapter. The Crayon has a current draw of 10mA at 9VDC.
  Current Draw: 10mA @ 9VDC
• Dimensions in inches: 2.75(w) x 4.5(l) x 2(h)
• Dimensions in mm: 70(w) x 115(l) x 51(h)

Controls

• GAIN Knob Controls the amount of input gain. As you turn GAIN clockwise, the overdrive ranges from just a touch of grit, in the fully counter-clockwise position, to classic distortion, in the fully clockwise setting.
• TREBLE Knob As you turn TREBLE clockwise, the overdrives high end is accentuated, making your tone brighter. Turn TREBLE counter-clockwise for a darker sound.
• BASS Knob As you turn BASS clockwise, the low end is boosted. Turn BASS counter clockwise to reduce low end.
• VOL Knob Sets the output level of the Crayon. As VOL is turned clockwise, the output volume increases.
• FOOTSWITCH and LED The Footswitch selects whether the Crayon is engaged or in true-bypass mode. When the effect is engaged, the LED is lit.
• INPUT Jack This jack is the audio input for the Crayon. The input impedance is 315k.
• AMP Jack This jack is the audio output from the Crayon. The output impedance is 50.
