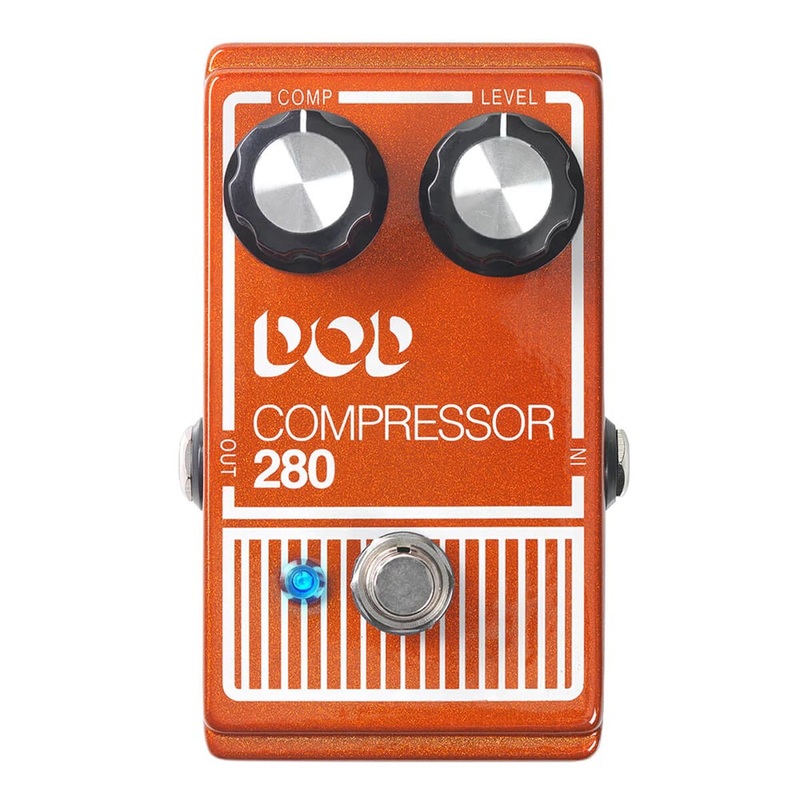

DOD Compressor 280 with Comp and Level Controls

Tame the wildest peaks and even out dynamics between single notes and chords.

The 280 is an optical compressor that can go from light sustain to utterly smashed with the turn of a knob. Unlike faster non-optical circuits the 280 retains your high frequencies until you get into the more extreme settings. The 280 is ideal for chicken-pickin, added sustain for leads, or snappy-slappy funk rhythm. The 280 also has enough output to be used as a lead boost with added compressor sustain. And like all of the updated DOD pedal, it has a modern power jack, LED, light but strong aluminum chassis, and true bypass switching.

FEATURES

• Based on legendary DOD Compressor 280 circuit design with updated components
• True Bypass and new crisp blue LED status indicator
• Lighter aluminum chassis

CONTROLS

• Compression Control: used to adjust the amount of compression being applied to your signal. Turn this clockwise to increase the compression.
• Level Control: used to adjust the output level of your signal. Turn this clockwise to increase the output level.

SPECIFICATIONS

General Specifications

• INPUT: 1 x instrument
• OUTPUT: 1 x
• CHASSIS MATERIAL: All Metal
• POWER SUPPLY: 9V Alkaline Dry Battery PS0913DC power supply

Dimensions

• HEIGHT: 2.25 (5.71 cm)
• WIDTH: 2.63 (6.68 cm)
• LENGTH: 4.68 (11.88 cm)
• WEIGHT: 0.62 lbs. (0.281 kg.)
