Audix FP7 Fusion 7 Mic Package

7-piece Fusion Drum Microphone Package
The FP7 Drum Pack contains a combination of f2, f5, and f6 dynamic microphones and the f9 condenser for overheads.

The f5 is tuned for snare drum and can be used as well for bongos, timbales, guitar cabinets, and acoustic instruments; the f2 dynamic microphone is ideally suited for rack and floor toms, congas, djembe, bongos, timbales, brass, and woodwind instruments. The f6, with its extended bass response, is designed for kick drum, bass cabinets, cajon, and other low-frequency instruments. The f9 condenser microphone is intended for cymbals and hi-hat.

Built to withstand the rigors of live stage applications, the Fusion Series microphones are also excellent for rehearsal, school, House of Worship, and a wide variety of home recording applications.

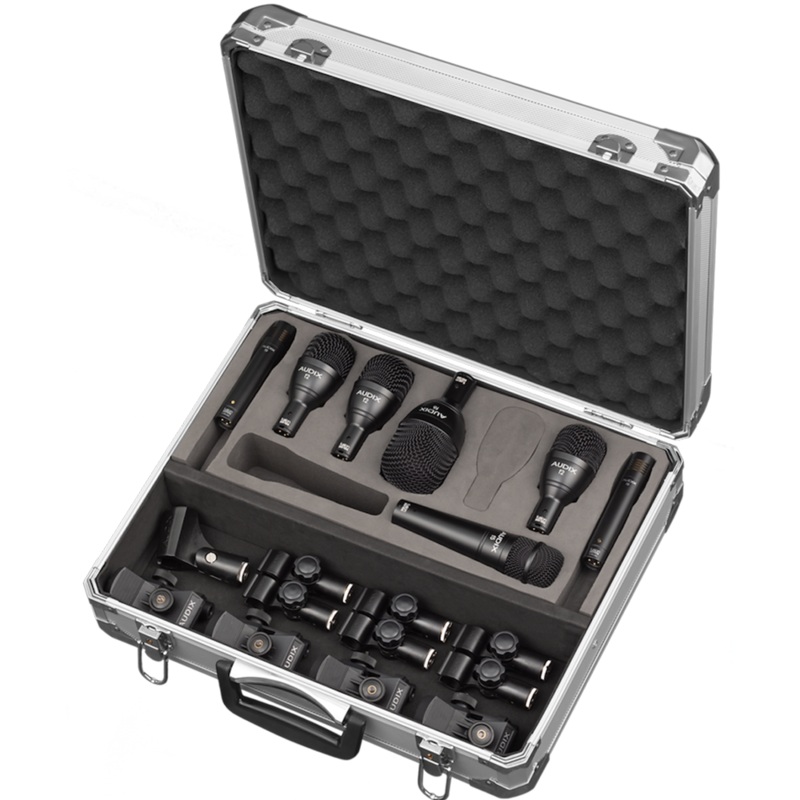

Includes an aluminum road case, (3) F2 rack and floor tom mics, (1) F5 snare mic, (1) F6 kick drum mic, and (2) F9 overhead mics.

Features

• All-in-one solution for drum miking
• Features 7 instrument-specific mics for optimal results
• cost effective and durable Audix quality + Aluminum case
• 1xf5 dynamic (snare)
• 3xf2 dynamics (toms)
• 1xf6 dynamic (kick)
• 2Xf9 condensers (overhead)

Specs

F2

• Transducer: Dynamic
• Frequency Response: 52 Hz 15 kHz
• Polar Pattern: Hypercardioid
• Output Impedance: 580 ohms
• Sensitivity: 2 mV / Pa @ 1 kHz
• Maximum SPL: 139 dB
• Off-axis Rejection: 20 dB
• Power Requirements: None
• Materials / Finish: Zinc Alloy / Black Finish
• Weight: 247 g / 8 oz
• Length: 104 mm / 4.09 in

F5

• Transducer: Dynamic
• Frequency Response: 55 Hz 15 kHz
• Polar Pattern: Hypercardioid
• Output Impedance: 580 ohms
• Sensitivity: 2.2 mV / Pa @ 1 kHz
• Maximum SPL: 137 dB
• Off-axis Rejection: 20 dB
• Power Requirements: None
• Materials / Finish: Zinc Alloy / Black Finish
• Weight: 283 g / 10 oz
• Length: 145 mm / 5.7 in

F6

• Transducer: Dynamic
• Frequency Response: 40 Hz 16 kHz
• Polar Pattern: Hypercardioid
• Output Impedance: 580 ohms
• Sensitivity: 1.2 mV / Pa @ 1 kHz
• Maximum SPL: 140 dB
• Off-axis Rejection: 23 dB
• Power Requirements: None
• Materials / Finish: Zinc Alloy / Black Finish
• Weight: 311 g / 11 oz
• Length: 121 mm / 4.76 in

F9

• Transducer: Pre-polarized Condenser
• Frequency Response: 40 Hz 20 kHz
• Polar Pattern: Cardioid
• Output Impedance: 200 ohms
• Sensitivity: 8 mV / Pa @ 1 kHz
• Maximum SPL: 137 dB
• Off-axis Rejection: 24 dB
• Power Requirements: 12 48 V Phantom
• Materials / Finish: Zinc Alloy / Black Finish
• Weight: 95 g / 3.3 oz
• Length: 111 mm / 4.37 in
