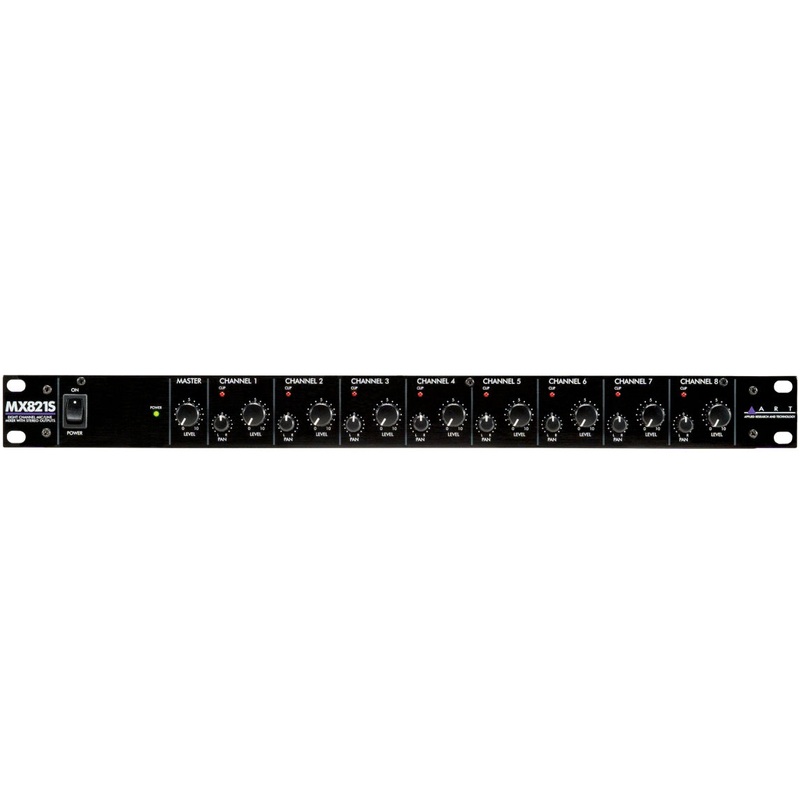

ART MX821S 8-Channel Mic/Line Mixer, 1U Rack Mount

8-Channel Personal Mixer Stereo
The MX821S is an eight-channel stereo rackmount mixer.

Each channel has an XLR mic input with switchable phantom power, an unbalanced 1/4 line input, and independent level and pan controls. The line input can also be converted to a direct output by adjusting the internal jumpers.

The master level knob controls the balanced 1/4 outputs. Theres also a pre-fader output and aux input with stereo RCA connections for chaining multiple units together, adding an additional stereo source, or sending a mix to a recording device that is unaffected by master level changes in the room.

Simple, streamlined, and featuring the most mic preamps of any ART rack mixer, the MX821S can serve as a standalone solution or add connectivity to an existing system.

Features

• Eight input channels with individual level and pan controls
• Pan controls place each input mono signal anywhere in the output stereo image
• Balanced microphone XLR or unbalanced 1/4-inch TS inputs on each channel Full
• +48V low noise phantom power switchable for each microphone input
• Balanced left and right 1/4-inch TRS main output jacks with master level control
• Prefade Output jacks and Aux Bus Input jacks allow units to be chained to provide extra inputs
• Each line input jack may be individually converted to a direct line output by means ofinternal jumpers Rugged 1U rack-mount steel chassis with built-in power supply
• Perfect for stage, studio and permanent installations

Specs

• Inputs
  • XLR female balanced (Mic, channels 1-8)
  • 1/4″ TS unbalanced (Line, channels 1-8)
  • RCA unbalanced (Aux Bus In, Left and Right)
• Outputs
  • 1/4″ TRS balanced (Main Outputs, Left and Right)
  • RCA unbalanced (Prefade Out, Left and Right)
• Phantom Power: Switch Selectable, +48V DC (regulated and filtered), 7 mA current limiting per leg
• Dimensions (HWD): 1.75 x 19 x 6
• Weight: 6.3 lbs
