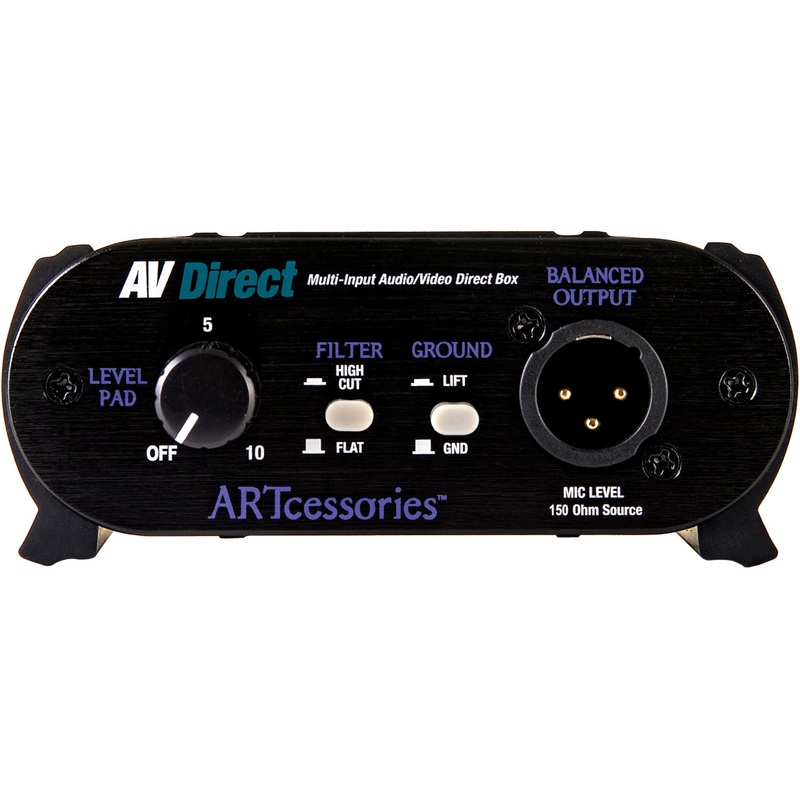

ART AVDIBOX AV Direct DI Box

*These are stock photos. Actual color and pattern may vary.

Multi-Input Direct Box
With a comprehensive range of inputs, the AV Direct lets you connect virtually any analog audio source to a mixer or PA system without added noise or signal loss.

There are 1/4″ TRS, 1/8″ TRS, and stereo RCA inputs for line level sources, and both 1/4″ TRS and pressure clip connectors for speaker level sources.

To reduce buzzes and hums, the front panel features a ground lift and high-frequency filter, and the balanced XLR output is isolated by a transformer.

The passive circuitry doesnt require batteries or an external power supply, the metal enclosure provides durable protection, and the compact footprint fits easily into almost any space.

Whether you need to connect a CD or DVD player, phono preamp, computer, or mobile device, the AV Direct will provide clear, powerful audio to your sound system.

Features

• 1/4″ TRS, 1/8″ TRS, and Stereo RCA Line Level Inputs
• 1/4″ and Pressure Clip Speaker Level Inputs
• Transformer-Isolated XLR Output
• Level Control
• 4.8 kHz High-Frequency Filter
• Ground Lift
• 20 Hz – 20 kHz Frequency Response
• Passive Design – No Power Required

Specs

• Inputs:
  • 1/8″ TRS, 1/4″ TRS, Stereo RCA (Line Level)
  • 1/4″, Pressure Posts (Speaker Level)
• Outputs: 1x XLR
• Controls: Level, Filter, Ground Lift
• Dimensions (HWD): 1.85 x 4.6″ x 4.4″
• Weight: 1 lb
